Dumpling application Spiral freezer

specifications:Spiral Freezer
Place of Origin:Shanghai China


Detailed Product Description
  • Super Freezing Performance
  • Professional modular design and easy for shipping
  • Custom designs to fit your requirements
  • Compact Drive Device is durable, safe and lower in maintenance
  • Modular Design, easy for installation and transportation
  • Customized Airflow to fit various Applications


Freezing Capacity Range: 2,200-11,020 lb/hr or 1,000-5,000 kg/hr


Products: Poultry, meat patties, raw shrimp, fish fillets, scallops, whole fish, packaged food in trays, ice cream cups, products requiring a long retention time.

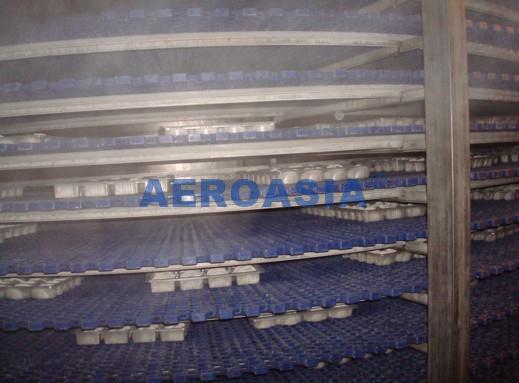

Features: The freezer is a continuous in-line-belt freezer designed to minimize product weight loss and assure quality with gentle handling during the freezing process. Products are evenly fed from the production line directly onto the loading freezer belt. It quickly transports the product into the low temperature-freezing zone. The belt spirals up or down along the rotating drum until it reaches the top or bottom where the frozen product is gently discharged from the freezer discharge port. Due to the large belt surface available, products can be frozen in single layers or individually for IQF (Individually Quick Frozen) quality. Because products can maintain their original load-in position throughout the freezing process, sorting after simultaneous freezing of mixed, different products is simplified.




  • Pre-Assembled and fully tested at our factory before shipping.
  • Ready to be placed and connected to refrigeration, electrical and water service.
  • Built to USDA, FDA, UL, CFIA, OSHA and CSA Specifications & Standards
  • Continuous inline food freezing.
  • Gentle smooth handling of products.
  • Compact design lowers operation cost and saves process floor space.
  • High efficiency allows fast freezing.
  • Minimum product weight loss by exposure to lowest air temperature at all times.
  • Stainless steel construction.
  • Easy access to sanitation and maintenance from all sides.
